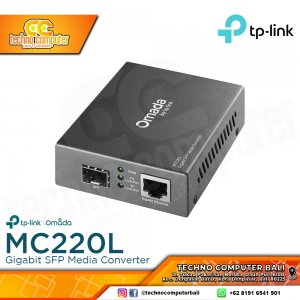

MC220LGigabit Ethernet Media Converter

FEATURES:

• 1× 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Complies with IEEE 802.3ab and IEEE 802.3z
• FX port supports hot-swappable
• Maximum transmission distance depends on the inserting SFP

SPECIFICATIONS:

SStandards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Basic Function :
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Maximum transmission distance depends on the inserting SFP module
Ports : 1 1000M SFP port, 1 10/100/1000M RJ45 port (Auto MDI/MDIX)
Wave Length : Depends on the used SFP module
Network Media 1000BASE-X : Multi-mode/Single-mode SFP module
Network Media 1000BASE-T : UTP category 5, 5e cable (maxium 100m), EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators : PWR, Link/Act
Dimensions (W*D*H) : 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply : External Power Adapter
Max Power Consumption : 1.7W
Safety & Emission : FCC, CE, RoHS

Package Contents
• Media Converter MC220L
• Power Adapter
• Installation Guide
